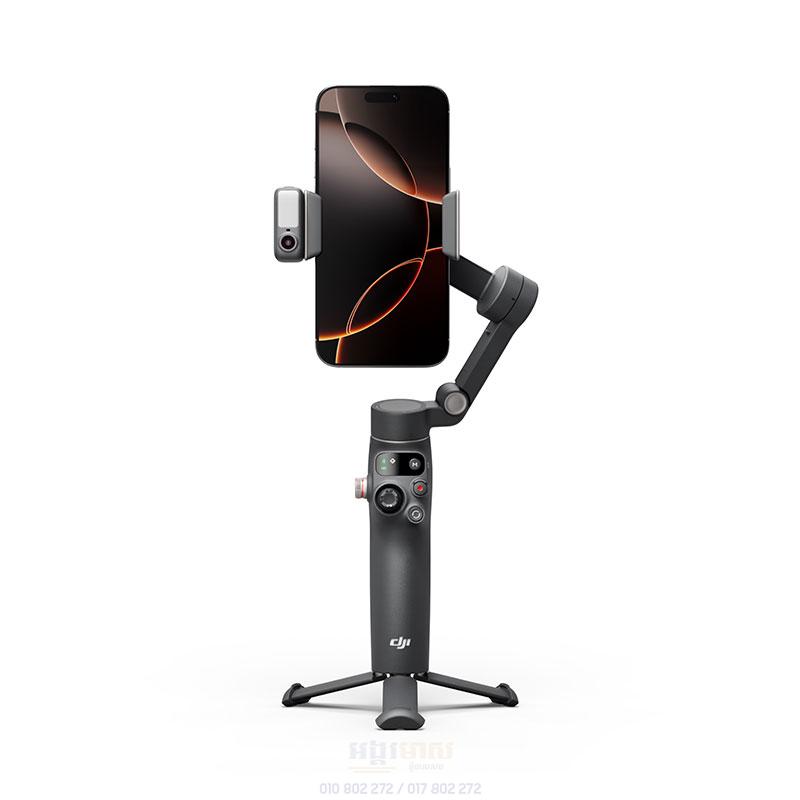

Osmo Mobile 8
Unfolded: 288×107×96 mm (L×W×H)
Folded: 190×95×46 mm (L×W×H)
Weight
Osmo Mobile 8
Gimbal + Built-in Tripod + Magnetic Phone Clamp + Multifunctional Module: Approx. 370 g
Data was collected in a controlled environment. Actual experience may vary.
Extension Rod
Built-in Extension Rod
Max Extension Length: 215 mm
Compatible Phone Weight
170-300 g
Compatible Phone Thickness
6.9-10 mm
Compatible Phone Width
67-84 mm
Bottom Port
1/4″-20 UNC port
Battery
Type
Li-Po 1S
Capacity
3350 mAh
Energy
12.06 Wh
Charging Temperature
5° to 40° C (41° to 104° F)
Operating Temperature
0° to 40° C (32° to 104° F)
Operating Time
Osmo Mobile 8
Approx. 10 hours
(Measured with the gimbal balanced in a level and stationary state without additional accessories)
With the Multifunctional Module’s intelligent tracking feature enabled and the fill light off, the operating time is approximately 5 hours. When the intelligent tracking feature is on and the fill light is set to maximum brightness, the operating time is approximately 4 hours. Using the gimbal to charge your smartphone will shorten the gimbal’s operating time.
Charging Time
Approx. 2.5 hours
(Measured with a 10W USB-C charger)
Gimbal Charging Port
USB-C
Phone Charging
Supported
Gimbal
Controllable Range
Pan: 360° (unlimited rotation)
Roll: -67° to 245°
Tilt: -20° to 40°
Mechanical Range
Pan: 360° (unlimited rotation)
Roll: -77° to 255°
Tilt: -224° to 100°
Max Control Speed
120°/s
Wireless Mode
Model
Bluetooth 5.3
Software
App
DJI Mimo
Tripod
Dimensions
Built-in Tripod
Length: 67 mm
Multifunctional Module
Compatibility
Osmo Mobile 8
Supported (optional)
GFSK
2 Mbps
GFSK Transmitter Power (EIRP)
< 16 dBm
GFSK Operating Frequency
2.4000-2.4835 GHz
Bluetooth Protocol
Bluetooth 5.3
Bluetooth Transmitter Power (EIRP)
< 16 dBm
Bluetooth Operating Frequency
2.4000-2.4835 GHz
Fill Light Illuminance
40 lux
This represents the maximum brightness measured at a distance of 0.6 meters from the subject and should be used for reference only.
Fill Light Color Temperature
2500-6000 K
